* 1.8 to 5.5V Input Voltage Range Typical RDS(ON) = 250m @ VIN = 5.5V Typical RDS(ON) = 275m @ VIN = 3.3V 100-250mA (min) Adjustable Current Limit 5% Current Limit Tolerance @ 250mA (min) 72 (typ) Output Discharge Resistance ESD Protected, Above 8000V HBM and 2000V CDM Applications PDAs Cell Phones GP
FPF2215
Fairchild Semiconductor
1.26 MB
Integrated load switch.

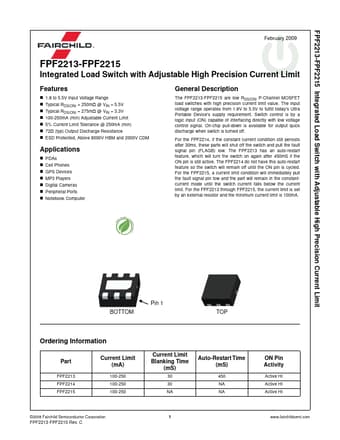

FPF2213-FPF2215 Integrated Load Switch with Adjustable High Precision Current Limit February 2009 FPF2213-FPF2215 Integrated Load Switch with Adjust.
