FSA1258, Dual SPST Analog Switch

FSA1256(A) / FSA1257(A) / FSA1258(A) * Low-RON Low-Voltage, Dual SPST Analog Switch with Low-ICCT “A” Option November 2013 FSA1256(A) / FSA1.
The FSA1256, FSA1256A, FSA1257, FSA1257A, FSA1258, and FSA1258A are high performance dual Single-Pole / Single-Throw (SPST) analog switches.

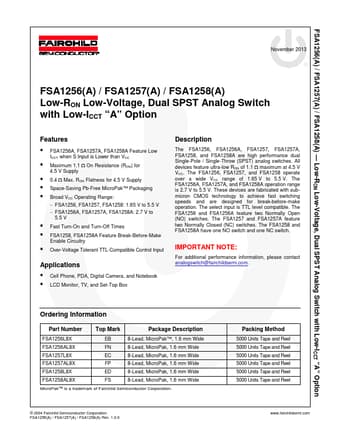

datasheet Preview Page 1 from Datasheet4u.com

FSA1258_FairchildSemiconductor.pdf

FSA1258 Datasheet Preview — Preview of FSA1258 PDF

Datasheet Details

Part number:

FSA1258

Manufacturer:

Fairchild Semiconductor

File Size:

0.97 MB

Description:

Dual SPST Analog Switch

Features

* FSA1256A, FSA1257A, FSA1258A Feature Low ICCT when S Input is Lower than VCC
* Maximum 1.1 Ω On Resistance (RON) for 4.5 V Supply
* 0.4 Ω Max. RON Flatness for 4.5 V Supply
* Space-Saving Pb-Free MicroPak™ Packaging
* Broad VCC Operating Range: - FSA1256, FSA1257, FSA1258: 1.65

Applications

* Cell Phone, PDA, Digital Camera, and Notebook
