FSA2268 Datasheet, Switch, ON Semiconductor

FSA2268 Features

  • Switch
  • 0.4Ω Typical On Resistance (RON) for +3.0V Supply
  • 0.25Ω Maximum RON Flatness for +3.0V Supply
  • -3db Bandwidth: > 50MHz
  • Low ICCT Current Over an Ex

PDF File Details

Part number:

FSA2268

Manufacturer:

ON Semiconductor ↗

File Size:

566.64kb

Download:

📄 Datasheet

Description:

Low-voltage dual-spdt analog switch. The FSA2268 is a high-performance, dual Single Pole Double Throw (SPDT) analog switch that features ultra-low RON of 0.4 (typical) a

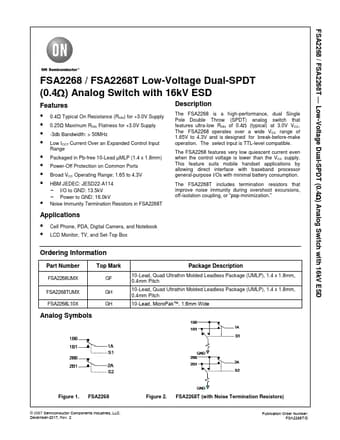

Datasheet Preview: FSA2268 📥 Download PDF (566.64kb)
Page 2 of FSA2268 Page 3 of FSA2268

FSA2268 Application

  • Applications by allowing direct interface with baseband processor general-purpose I/Os with minimal battery consumption. The FSA2268T includes termi
