FSA1153

DP3T USB Type C Audio andUART Analog Switch

FSA1153 Features

* DP3T USB Type C Audio and UART Analog Switch

* VDD: 2.7 V to 5.5 V

* ICC: 35 mA Typical

* USB Switch

* 3 dB Bandwidth (Sdd21): 850 MHz

* Audio Switch:

* Negative Rail Capability:

* 3 V to +3 V

* Audio Path RON = 1 W (T

FSA1153 General Description

The FSA1153 is a bi

*directional, low power, high speed USB2.0 Type

*C, Audio and UART analog switch with overvoltage protection. It is configured as a Double

*Pole, Triple Throw (DP3T) switch. The FSA1153s protection function prevents damage to Type

*C USB 2.0 port pins .

FSA1153 Datasheet (282.33 KB)

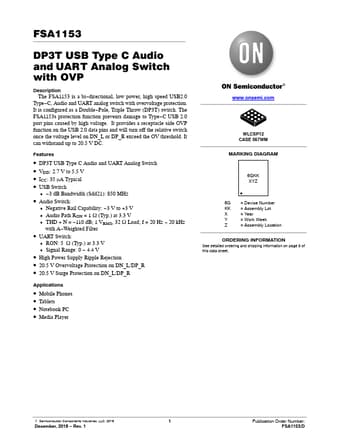

Preview of FSA1153 PDF

Datasheet Details

Part number:

FSA1153

Manufacturer:

ON Semiconductor ↗

File Size:

282.33 KB

Description:

Dp3t usb type c audio anduart analog switch.
