FSA110

Audio and Wired-OR USB2.0 Hi-Speed(480Mbps) Switch

FSA110 Features

* 6pF Typical Switch Off Capacitance for HS USB 2.5Ω Typical On Resistance for Audio Signaling Negative-Swing-Capable Audio Channel Automatic USB Detection Available Power-Off Protection on the D+/R, D-/L Ports Flow-Through Pin Out Eliminates PCB Vias Built-In

FSA110 General Description

The FSA110 is a Double-Pole, Single Throw (DPST) switch that combines a low-distortion audio path with low off capacitance for USB applications. This configuration is ideal for wired-OR configurations, enabling shared USB2.0 Hi-Speed (HS) and audio on a single connector. The architecture is designed.

FSA110 Datasheet (632.63 KB)

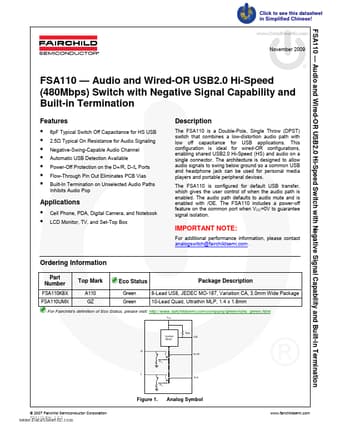

Preview of FSA110 PDF

Datasheet Details

Part number:

FSA110

Manufacturer:

Fairchild Semiconductor

File Size:

632.63 KB

Description:

Audio and wired-or usb2.0 hi-speed(480mbps) switch.
Click to see this datasheet in Simplified Chinese! FSA110

* Audio and Wired-OR USB2.0 Hi-Speed Switch with Negative Signal Capability and Bui.
