FSA2268T, FSA2268 Low-Voltage Dual-SPDT Analog Switch

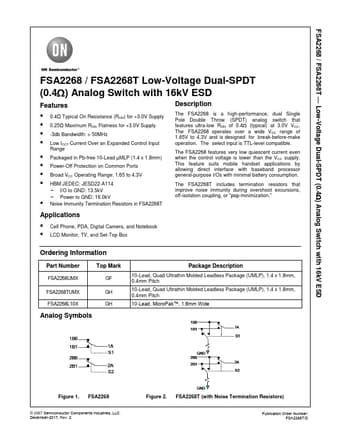

📥 Download Datasheet  Datasheet Preview Page 1

Description

FSA2268 / FSA2268T * Low-Voltage Dual-SPDT (0.4) Analog Switch with 16kV ESD FSA2268 / FSA2268T Low-Voltage Dual-SPDT (0.4) Analog Switch .
The FSA2268 is a high-performance, dual Single Pole Double Throw (SPDT) analog switch that features ultra-low RON of 0.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FSA2268T, FSA2268. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FSA2268T, FSA2268
Manufacturer
ON Semiconductor ↗
File Size
566.64 KB
Datasheet
FSA2268-ONSemiconductor.pdf
Description
Low-Voltage Dual-SPDT Analog Switch
Note
This datasheet PDF includes multiple part numbers: FSA2268T, FSA2268.
Please refer to the document for exact specifications by model.

Features

* 0.4Ω Typical On Resistance (RON) for +3.0V Supply
* 0.25Ω Maximum RON Flatness for +3.0V Supply
* -3db Bandwidth: > 50MHz
* Low ICCT Current Over an Expanded Control Input Range
* Packaged in Pb-free 10-Lead µMLP (1.4 x 1.8mm)
* Power-Off Protection on Common Ports
* Br

Applications

* by allowing direct interface with baseband processor general-purpose I/Os with minimal battery consumption. The FSA2268T includes termination resistors that improve noise immunity during overshoot excursions, off-isolation coupling, or “pop-minimization. ” Applications
* Cell Phone, PDA, Digital
