FSA2567 - Dual SIM Card Analog Switch

Product Overview

ON Semiconductor

Datasheet Details

Part number	FSA2567
Manufacturer	ON Semiconductor
File Size	345.38 KB
Description	Dual SIM Card Analog Switch
Datasheet	FSA2567 Datasheet

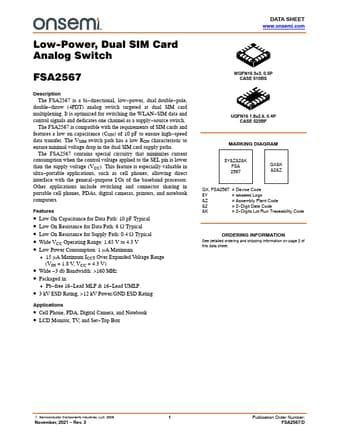

Additional preview pages of the FSA2567 datasheet.

Product details

Description

The FSA2567 is a bi directional, low power, dual double pole, double throw (4PDT) analog switch targeted at dual SIM card multiplexing. SIM data and control signals and dedicates one channel as a supply source switch.

Features

a low on capacitance (CON) of 10 pF to ensure high.
speed data transfer. The VSIM switch path has a low RON characteristic to ensure minimal voltage drop in the dual SIM card supply paths. The FSA2567 contains special circuitry that minimizes current consumption when the control voltage applied to the SEL pin is lower than the supply voltage (VCC). This feature is especially valuable in ultra.
portable.
