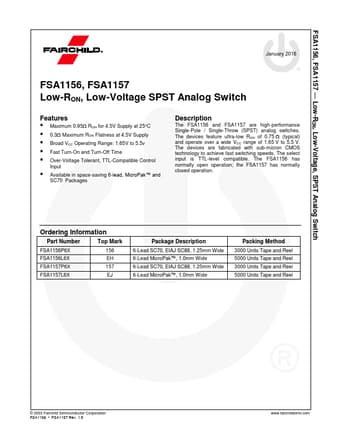

FSA1157 Datasheet, Switch, Fairchild Semiconductor

FSA1157 Features

• Switch
• Maximum 0.95 RON for 4.5V Supply at 25°C
• 0.3 Maximum RON Flatness at 4.5V Supply
• Broad VCC Operating Range: 1.65V to 5.5v
• Fast Turn-On and Turn

PDF File Details

Part number:

FSA1157

Manufacturer:

Fairchild Semiconductor

File Size:

718.97kb

Download:

📄 Datasheet

Description:

Low voltage spst analog switch. The FSA1156 and FSA1157 are high-performance Single-Pole / Single-Throw (SPST) analog switches. The devices feature ultra-low RON of
