FSBB15CH60, Motion SPM 3 module

FSBB15CH60 Motion SPM® 3 Series FSBB15CH60 Motion SPM® 3 Series January 2014 .
FSBB15CH60 is a Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

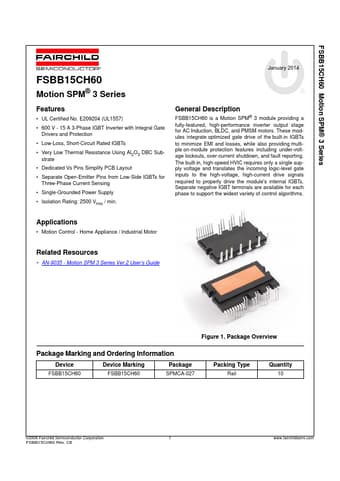

datasheet Preview Page 1 from Datasheet4u.com

FSBB15CH60_FairchildSemiconductor.pdf

FSBB15CH60 Datasheet Preview — Preview of FSBB15CH60 PDF

Datasheet Details

Part number:

FSBB15CH60

Manufacturer:

Fairchild Semiconductor

File Size:

610.19 KB

Description:

Motion SPM 3 module

Features

* UL Certified No. E209204 (UL1557)
* 600 V - 15 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
* Low-Loss, Short-Circuit Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Substrate
* Dedicated Vs Pins Simplify PCB Layout
* S

Applications

* Motion Control - Home Appliance / Industrial Motor Related Resources
* AN-9035 - Motion SPM 3 Series Ver.2 User’s Guide Figure 1. Package Overview Package Marking and Ordering Information Device FSBB15CH60 Device Marking FSBB15CH60 Package SPMCA-027 Packing Type Rail Quanti
