FSBB15CH60F Motion SPM 3 module

Fairchild Semiconductor

Description

FSBB15CH60F Motion SPM® 3 Series FSBB15CH60F Motion SPM® 3 Series January 2014 .
FSBB15CH60F is a Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

📥 Download Datasheet

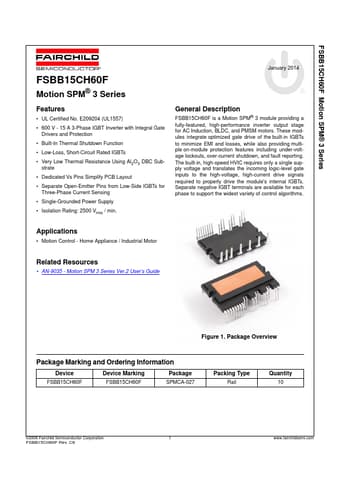

FSBB15CH60F Datasheet Preview — Preview of FSBB15CH60F PDF

Datasheet Specifications

Part number: FSBB15CH60F
Manufacturer: Fairchild Semiconductor
File Size: 610.60 KB
Datasheet: FSBB15CH60F_FairchildSemiconductor.pdf
Description: Motion SPM 3 module

Features

* UL Certified No. E209204 (UL1557)
* 600 V - 15 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
* Built-In Thermal Shutdown Function
* Low-Loss, Short-Circuit Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Sub- strate
* De

Applications

* Motion Control - Home Appliance / Industrial Motor Related Resources
* AN-9035 - Motion SPM 3 Series Ver.2 User’s Guide Figure 1. Package Overview Package Marking and Ordering Information Device FSBB15CH60F Device Marking FSBB15CH60F Package SPMCA-027 Packing Type Rail Quan
