FSBB30CH60F - Motion SPM 3 module

Product Overview

ON Semiconductor

📥 Download Datasheet

FSBB30CH60F Motion SPM 3 module by ON Semiconductor - Datasheet Preview — Datasheet preview – FSBB30CH60F

Datasheet Details

Part number	FSBB30CH60F
Manufacturer	ON Semiconductor
File Size	872.86 KB
Description	Motion SPM 3 module
Datasheet	FSBB30CH60F Datasheet

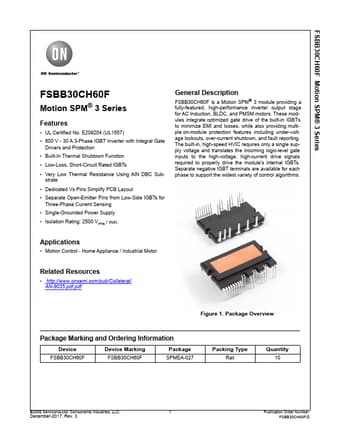

Additional preview pages of the FSBB30CH60F datasheet.

Product details

Description

FSBB30CH60F is a Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

Features

UL Certified No. E209204 (UL1557).
600 V - 30 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection.
Built-In Thermal Shutdown Function.
Low-Loss, Short-Circuit Rated IGBTs.
Very Low Thermal Resistance Using AlN DBC Sub- strate.
Dedicated Vs Pins Simplify PCB Layout.
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing.
Single-Grounded Power Supply.
Isolation Rating: 2500 Vrms.
