FSB50250BS - Motion SPM5

ON Semiconductor

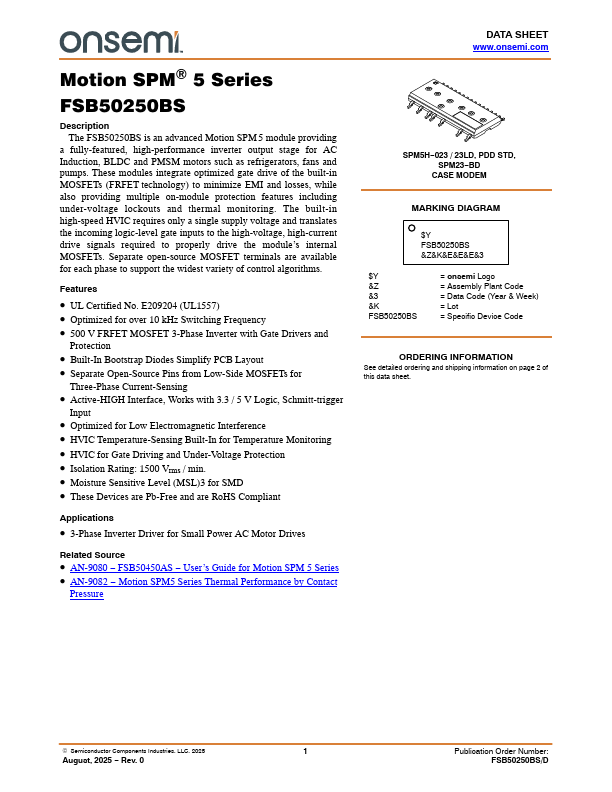

FSB50250BS Datasheet Preview — Preview of FSB50250BS PDF

Datasheet Details

Part number	FSB50250BS
Manufacturer	ON Semiconductor ↗
File Size	278.85 KB
Description	Motion SPM5
Datasheet	FSB50250BS-ONSemiconductor.pdf

FSB50250BS Product details

Description

The FSB50250BS is an advanced Motion SPM 5 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors such as refrigerators, fans and pumps.These modules integrate optimized gate drive of the built-in MOSFETs (FRFET technology) to minimize EMI and losses, while also providing multiple on-module protection

Features

including under-voltage lockouts and thermal monitoring. The built-in high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module’s internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms. Features.
UL Certified No. E209204 (UL1557).
Optimized for over 10 kHz Switching.
