FSB50450BS - Motion SPM 5

This page provides the datasheet information for the FSB50450BS, a member of the FSB50450B Motion SPM 5 family.

Datasheet Summary

Features

  • UL Certified No. E209204 (UL1557).
  • Optimized for over 10 kHz Switching Frequency.
  • 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection.
  • Built-In Bootstrap Diodes Simplify PCB Layout.
  • Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing.
  • Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input.
  • Optimized for Low Electromagnetic Interference.
  • HVIC Temperature-Sensing.

📥 Download Datasheet

Datasheet preview – FSB50450BS

Datasheet Details

Part number FSB50450BS
Manufacturer ON Semiconductor
File Size 599.86 KB
Description Motion SPM 5
Datasheet download datasheet FSB50450BS Datasheet
Additional preview pages of the FSB50450BS datasheet.

📁 Similar Datasheet

  • FSB50450 - Smart Power Module (Fairchild Semiconductor)
  • FSB50450A - Motion SPM5 (Fairchild Semiconductor)
  • FSB50450AS - Motion SPM5 (Fairchild Semiconductor)
  • FSB50450AT - Motion SPM 5 Series (Fairchild Semiconductor)
  • FSB50450S - smart power module (Fairchild Semiconductor)
  • FSB50450T - Smart Power Module (Fairchild Semiconductor)
  • FSB50450US - Smart Power Module (Fairchild Semiconductor)
  • FSB50250 - Smart Power Module (Fairchild Semiconductor)
  • FSB50250AS - Motion SPM5 (Fairchild Semiconductor)
  • FSB50250S - Smart Power Module (Fairchild Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

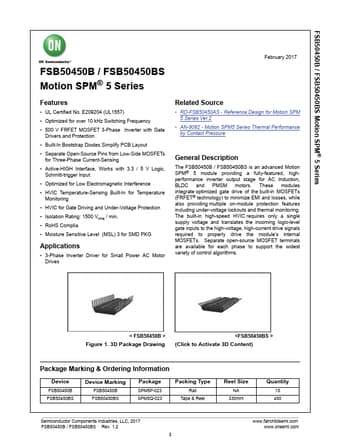

FSB50450B / FSB50450BS Motion SPM® 5 Series FSB50450B / FSB50450BS Motion SPM® 5 Series February 2017 Features • UL Certified No. E209204 (UL1557) • Optimized for over 10 kHz Switching Frequency • 500 V FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection • Built-In Bootstrap Diodes Simplify PCB Layout • Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing • Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input • Optimized for Low Electromagnetic Interference • HVIC Temperature-Sensing Built-In for Temperature Monitoring • HVIC for Gate Driving and Under-Voltage Protection • Isolation Rating: 1500 Vrms / min.
