FSB50450

Smart Power Module

FSB50450 Features

* 500V 3.0A 3-phase FRFET inverter including high voltage integrated circuit (HVIC)

* 3 divided negative dc-link terminals for inverter current sensing applications

* HVIC for gate driving and undervoltage protection

* 3/5V CMOS/TTL compatible, active-high interface

FSB50450 General Description

TM FSB50450 is a tiny smart power module (SPMTM) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving. FSB50450 prov.

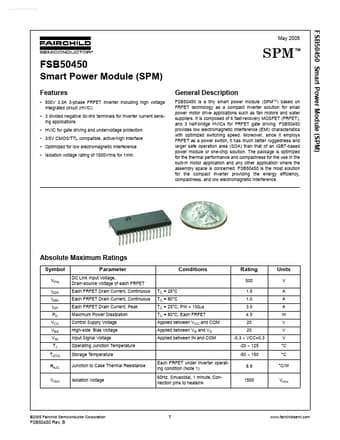

FSB50450 Datasheet (366.54 KB)

Preview of FSB50450 PDF

Datasheet Details

Part number:

FSB50450

Manufacturer:

Fairchild Semiconductor

File Size:

366.54 KB

Description:

Smart power module.
