FSB50450AS - Motion SPM5

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

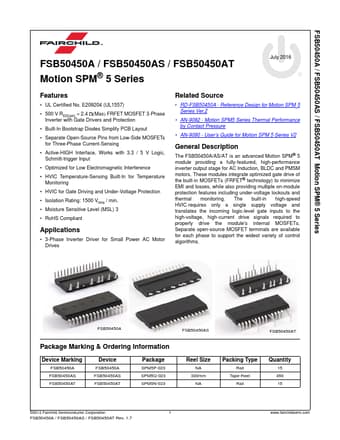

FSB50450AS Motion SPM5 by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – FSB50450AS

Datasheet Details

Part number	FSB50450AS
Manufacturer	Fairchild Semiconductor
File Size	474.31 KB
Description	Motion SPM5
Datasheet	FSB50450AS Datasheet
Note	This datasheet PDF includes multiple part numbers: FSB50450AS, FSB50450AT. Please refer to the document for exact specifications by model.
Additional preview pages of the FSB50450AS datasheet.

Product details

Features

UL Certified No. E209204 (UL1557).
500 V RDS(on) = 2.4 Max FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection.
Built-In Bootstrap Diodes Simplify PCB Layout.
Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing.
Active-HIGH Interface, Works with 3.3 / 5 V Logic, Schmitt-trigger Input.
Optimized for Low Electromagnetic Interference.
HVIC Temperature-Sensing Built-In for Temperature Monitoring.
