FSB50450S

smart power module

FSB50450S Features

* 500V 3.0A 3-phase FRFET inverter including high voltage integrated circuit (HVIC)

* 3 divided negative dc-link terminals for inverter current sensing applications

* HVIC for gate driving and undervoltage protection

* 3/5V CMOS/TTL compatible, active-high interface

FSB50450S General Description

FSB50450S is a tiny smart power module (SPM) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving. FSB50450S provides .

FSB50450S Datasheet (198.51 KB)

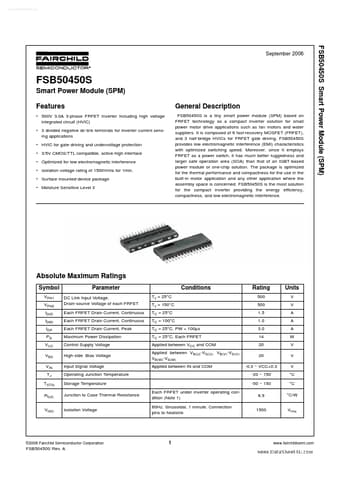

Preview of FSB50450S PDF

Datasheet Details

Part number:

FSB50450S

Manufacturer:

Fairchild Semiconductor

File Size:

198.51 KB

Description:

Smart power module.
