FSB50250US

Smart Power Module

FSB50250US Features

* 500V RDS(on)=4.2Ω(max) 3-phase FRFET inverter including high voltage integrated circuit (HVIC)

* 3 divided negative dc-link terminals for inverter current sensing applications

* HVIC for gate driving and undervoltage protection

* 3/5V CMOS/TTL compatible, active-hig

FSB50250US General Description

FSB50250US is a tiny smart power module (SPM®) based on FRFET technology as a compact inverter solution for small power motor drive applications such as fan motors and water suppliers. It is composed of 6 fast-recovery MOSFET (FRFET), and 3 half-bridge HVICs for FRFET gate driving. FSB50250US provid.

FSB50250US Datasheet (442.87 KB)

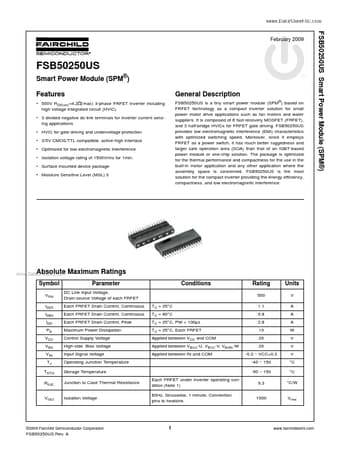

Preview of FSB50250US PDF
