FSB50250AS - Motion SPM5

Fairchild Semiconductor

FSB50250AS Description

FSB50250AS Motion SPM® 5 Series FSB50250AS Motion SPM® 5 Series January 2014 .

FSB50250AS Features

* UL Certified No. E209204 (UL1557)
* 500 V RDS(on) = 3.8 Max FRFET MOSFET 3-Phase Inverter with Gate Drivers and Protection
* Built-In Bootstrap Diodes Simplify PCB Layout
* Separate Open-Source Pins from Low-Side MOSFETs for Three-Phase Current-Sensing

FSB50250AS Applications

* 3-Phase Inverter Driver for Small Power AC Motor Drives Related Source
* RD-FSB50450A - Reference Design for Motion SPM 5 Series Ver.2
* AN-9082 - Motion SPM5 Series Thermal Performance by Contact Pressure
* AN-9080 - User’s Guide for Motion SPM 5 Series V2 General

📥 Download Datasheet

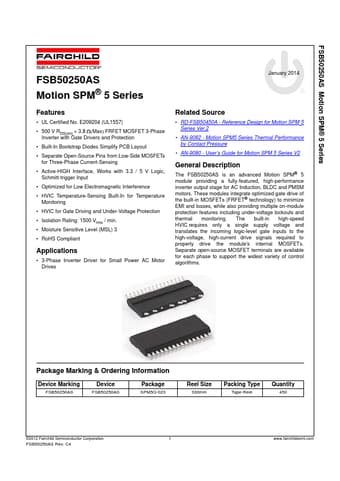

FSB50250AS Datasheet Preview — Preview of FSB50250AS PDF

Datasheet Details

Part number: FSB50250AS
Manufacturer: Fairchild Semiconductor
File Size: 605.55 KB
Datasheet: FSB50250AS-FairchildSemiconductor.pdf
Description: Motion SPM5
