FSBB30CH60CT - Motion SPM 3 module

FSBB30CH60CT Description

FSBB30CH60CT Motion SPM® 3 Series FSBB30CH60CT Motion SPM® 3 Series January 2014 .
FSBB30CH60CT is an advanced Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM m.

FSBB30CH60CT Features

* UL Certified No. E209204 (UL1557)
* 600 V - 30 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
* Low-Loss, Short-Circuit Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Substrate
* Built-In Bootstrap Diodes and Dedicated Vs Pins S

FSBB30CH60CT Applications

* Motion Control - Home Appliance / Industrial Motor Related Resources

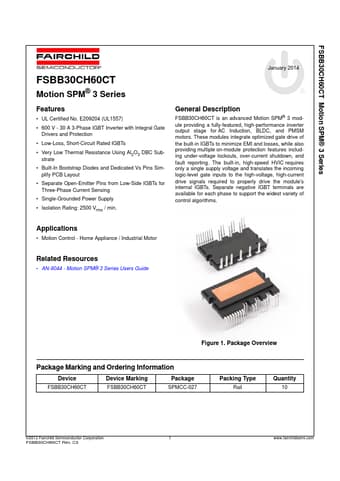

* AN-9044 - Motion SPM® 3 Series Users Guide Figure 1. Package Overview Package Marking and Ordering Information Device FSBB30CH60CT Device Marking FSBB30CH60CT Package SPMCC-027 Packing Type Rail Quantity
