FSBB20CH60CL - Motion SPM 3 module

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FSBB20CH60CL
Manufacturer	Fairchild Semiconductor
File Size	728.45 KB
Description	Motion SPM 3 module
Datasheet	FSBB20CH60CL Datasheet

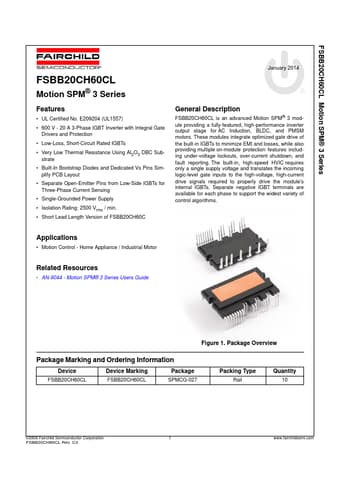

Additional preview pages of the FSBB20CH60CL datasheet.

Product details

Description

FSBB20CH60CL is an advanced Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

Features

UL Certified No. E209204 (UL1557).
600 V - 20 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection.
Low-Loss, Short-Circuit Rated IGBTs.
Very Low Thermal Resistance Using Al2O3 DBC Substrate.
Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout.
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing.
Single-Grounded Power Supply.
Isolation Rating: 2500 Vrms / min.
