FSBB20CH60F, Motion SPM 3 module

FSBB20CH60F Motion SPM® 3 Series FSBB20CH60F Motion SPM® 3 Series January 2014 .
FSBB20CH60F is a Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

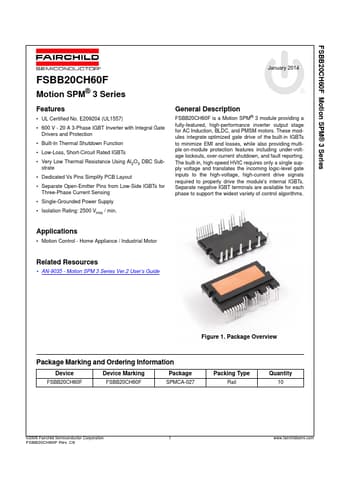

datasheet Preview Page 1 from Datasheet4u.com

FSBB20CH60F_FairchildSemiconductor.pdf

FSBB20CH60F Datasheet Preview — Preview of FSBB20CH60F PDF

Datasheet Details

Part number:

FSBB20CH60F

Manufacturer:

Fairchild Semiconductor

File Size:

610.60 KB

Description:

Motion SPM 3 module

Features

* UL Certified No. E209204 (UL1557)
* 600 V - 20 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
* Built-In Thermal Shutdown Function
* Low-Loss, Short-Circuit Rated IGBTs
* Very Low Thermal Resistance Using Al2O3 DBC Sub- strate
* De

Applications

* Motion Control - Home Appliance / Industrial Motor Related Resources
* AN-9035 - Motion SPM 3 Series Ver.2 User’s Guide Figure 1. Package Overview Package Marking and Ordering Information Device FSBB20CH60F Device Marking FSBB20CH60F Package SPMCA-027 Packing Type Rail Quan
