FSQ100 - Green Mode Fairchild Power Switch

FSQ100 Description

FSQ100 * Green Mode Fairchild Power Switch (FPSTM) March 2011 FSQ100 Green Mode Fairchild Power Switch (FPS™) .
The FSQ100 consists of an integrated Pulse Width Modulator (PWM) and SenseFET, specifically designed for high-performance, off-line, Switch-Mode Power.

FSQ100 Features

* Internal Avalanche-Rugged SenseFET
* Precision Fixed Operating Frequency: 67KHz
* Burst-Mode Operation
* Internal Startup Circuit
* Pulse-by-Pulse Current Limiting
* Over-Voltage Protection (OVP)
* Overload Protection (OLP)
* Internal Thermal Shutdown Function (TSD)

FSQ100 Applications

* Charger & Adapter for Mobile Phone, PDA, MP3
* Auxiliary Power for White Goods, PC, C-TV, Monitor Related Application Notes
* AN-4137
* Design Guidelines for Off-line Flyback Converters using FPS™
* AN-4141
* Troubleshooting and Design Tips for Fairchild Power Switc

📥 Download Datasheet

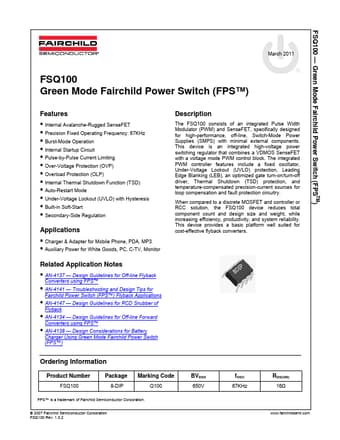

Preview of FSQ100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FSQ100
Manufacturer
Fairchild Semiconductor
File Size
795.57 KB
Datasheet
FSQ100_FairchildSemiconductor.pdf
Description
Green Mode Fairchild Power Switch
