FSQ110 Green Mode Fairchild Power Switch

Fairchild Semiconductor

Description

FSQ110 * Green Mode Fairchild Power Switch (FPS™) November 2007 FSQ110 Green Mode Fairchild Power Switch (FPS™) .
The FSQ110 consists of an integrated, current-mode, Pulse Width Modulator (PWM) and an avalanche-rugged 650V SenseFET.

📥 Download Datasheet

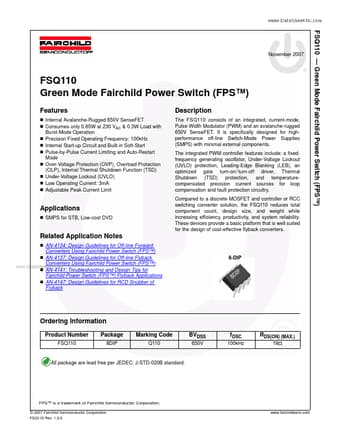

FSQ110 Datasheet Preview — Preview of FSQ110 PDF

Datasheet Specifications

Part number: FSQ110
Manufacturer: Fairchild Semiconductor
File Size: 778.72 KB
Datasheet: FSQ110_FairchildSemiconductor.pdf
Description: Green Mode Fairchild Power Switch

Features

* Internal Avalanche-Rugged 650V SenseFET

Applications

* SMPS for STB, Low-cost DVD Related Application Notes
* AN-4134: Design Guidelines for Off-line Forward Converters Using Fairchild Power Switch (FPS™)
* AN-4137: Design Guidelines for Off-line Flyback 8-DIP Converters Using Fairchild Power Switch (FPS™) www. DataSheet4U. c
