FSUSB40 Datasheet - Fairchild Semiconductor

FSUSB40 USB2.0 Switch

The FSUSB40 is a bi-directional, low-power, two-port, Hi-Speed, USB2.0 switch. Configured as a double-pole, double-throw switch (DPDT) switch, it is optimized for switching between two Hi-Speed (480Mbps) sources or a Hi-Speed and Full-Speed (12Mbps) source. The FSUSB40 is compatible with the require.

FSUSB40 Features

* Low On Capacitance: 5.9pF Typical

* Low On Resistance: 3.9Ω Typical

* Low Power Consumption: 1μA Maximum - 15μA Maximum ICCT over an Expanded Voltage Range (VIN=1.8V, VCC=4.3V)

* Wide -3db Bandwidth: > 720MHz

* Packaged in: - 10-Lead MicroPak™ (1.6 x 2.1mm) - 10-Lead UMLP (1.4

FSUSB40_FairchildSemiconductor.pdf

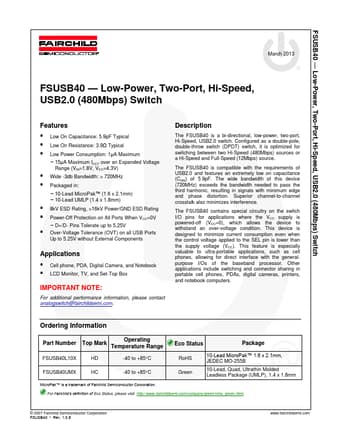

Preview of FSUSB40 PDF
FSUSB40 Datasheet Preview Page 2 FSUSB40 Datasheet Preview Page 3

Datasheet Details

Part number:

FSUSB40

Manufacturer:

Fairchild Semiconductor

File Size:

796.46 KB

Description:

Usb2.0 switch.
