FSUSB46 - USB2.0 DPST Switch

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

FSUSB46 USB2.0 DPST Switch by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – FSUSB46

Datasheet Details

Part number	FSUSB46
Manufacturer	Fairchild Semiconductor
File Size	909.39 KB
Description	USB2.0 DPST Switch
Datasheet	FSUSB46 Datasheet

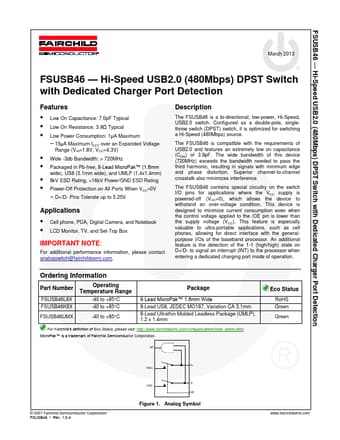

Additional preview pages of the FSUSB46 datasheet.

Product details

Description

The FSUSB46 is a bi-directional, low-power, Hi-Speed, USB2.0 switch.

Features

Low On Capacitance: 7.0pF Typical.
Low On Resistance: 3.9Ω Typical.
Low Power Consumption: 1μA Maximum - 15μA Maximum ICCT over an Expanded Voltage Range (VIN=1.8V, VCC=4.3V).
Wide -3db Bandwidth: > 720MHz.
Packaged in Pb-free, 8-Lead MicroPak™ (1.6mm wide), US8 (3.1mm wide), and UMLP (1.4x1.4mm).
8kV ESD Rating, >16kV Power/GND ESD Rating.
Power-Off Protection on All Ports When VCC=0V - D+/D- Pins Tolerate up to 5.25V.
