FSUSB45 - USB2.0 (480Mbps) Switch

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

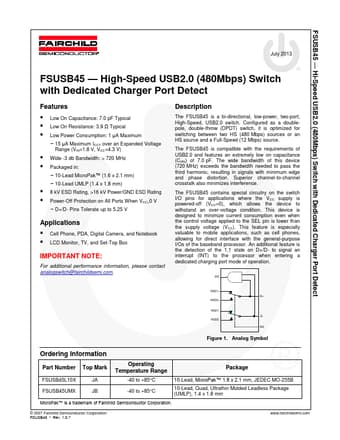

FSUSB45 USB2.0 (480Mbps) Switch by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – FSUSB45

Datasheet Details

Part number	FSUSB45
Manufacturer	Fairchild Semiconductor
File Size	965.54 KB
Description	USB2.0 (480Mbps) Switch
Datasheet	FSUSB45 Datasheet
Additional preview pages of the FSUSB45 datasheet.

Product details

Description

The FSUSB45 is a bi-directional, low-power, two-port, High-Speed, USB2.0 switch.

Features

Low On Capacitance: 7.0 pF Typical.
Low On Resistance: 3.9 Ω Typical.
Low Power Consumption: 1 μA Maximum - 15 μA Maximum ICCT over an Expanded Voltage Range (VIN=1.8 V, VCC=4.3 V).
Wide -3 db Bandwidth: > 720 MHz.
Packaged in: - 10-Lead MicroPak™ (1.6 x 2.1 mm) - 10-Lead UMLP (1.4 x 1.8 mm).
8 kV ESD Rating, >16 kV Power/GND ESD Rating.
Power-Off Protection on All Ports When VCC=0 V - D+/D- Pins Tolerate up to 5.25 V.
