H11AA3 - AC INPUT/PHOTOTRANSISTOR OPTOCOUPLERS

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	H11AA3
Manufacturer	Fairchild Semiconductor
File Size	131.25 KB
Description	AC INPUT/PHOTOTRANSISTOR OPTOCOUPLERS
Datasheet	H11AA3 Datasheet

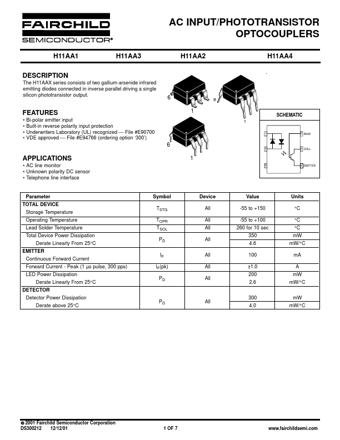

Additional preview pages of the H11AA3 datasheet.

Product details

Description

The H11AAX series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output.

Features

Bi-polar emitter input Built-in reverse polarity input protection Underwriters Laboratory (UL) recognized  File #E90700 VDE approved  File #E94766 (ordering option ‘300’) 1 1 6 BASE 6 2 5 COLL.
