HCPL0530 Datasheet, Optocouplers, Fairchild Semiconductor

HCPL0530 Features

• Optocouplers
• High speed
    – 1 MBit/s
• 15kV/µs minimum commone mode transient immunity at VCM=1500V (HCPL0453/0534)
• Open collector output
• Guarante

PDF File Details

Part number:

HCPL0530

Manufacturer:

Fairchild Semiconductor

File Size:

577.01kb

Download:

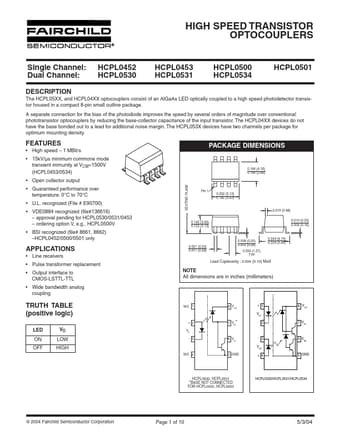

📄 Datasheet

Description:

High speed transistor optocouplers. The HCPL05XX, and HCPL04XX optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor housed in

HCPL0530 Application

• Applications
• Line receivers
• Pulse transformer replacement
• Output interface to CMOS-LSTTL-TTL
• Wide bandwidth
