HCPL0531 - HIGH SPEED TRANSISTOR OPTOCOUPLERS

HCPL0531 Description

HIGH SPEED TRANSISTOR OPTOCOUPLERS Single Channel: Dual Channel: .
The HCPL05XX, and HCPL04XX optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor housed in a compact 8-pin.

HCPL0531 Features

* High speed
* 1 MBit/s
* 15kV/µs minimum commone mode transient immunity at VCM=1500V (HCPL0453/0534)
* Open collector output
* Guaranteed performance over temperature: 0°C to 70°C
* U. L. recognized (File # E90700)
* VDE0884 recognized (file#13

HCPL0531 Applications

* Line receivers
* Pulse transformer replacement
* Output interface to CMOS-LSTTL-TTL
* Wide bandwidth analog coupling 0.021 (0.53) 0.011 (0.28) 0.008 (0.20) 0.003 (0.08) 0.050 (1.27) TYP 0.244 (6.19) 0.224 (5.69) Lead Coplanarity : 0.004 (0.10) MAX NOTE All dime

📥 Download Datasheet

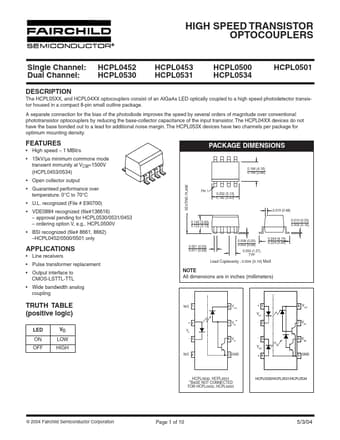

Preview of HCPL0531 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL0531
Manufacturer
Fairchild Semiconductor
File Size
577.01 KB
Datasheet
HCPL0531_FairchildSemiconductor.pdf
Description
HIGH SPEED TRANSISTOR OPTOCOUPLERS
