HCPL0534 HIGH SPEED TRANSISTOR OPTOCOUPLERS

The HCPL05XX, and HCPL04XX optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor housed in a compact 8-pin small outline package. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional photot.

HCPL0534 Features

* High speed

* 1 MBit/s

* 15kV/µs minimum commone mode transient immunity at VCM=1500V (HCPL0453/0534)

* Open collector output

* Guaranteed performance over temperature: 0°C to 70°C

* U.L. recognized (File # E90700)

* VDE0884 recognized (ﬁle#13

HCPL0534_FairchildSemiconductor.pdf

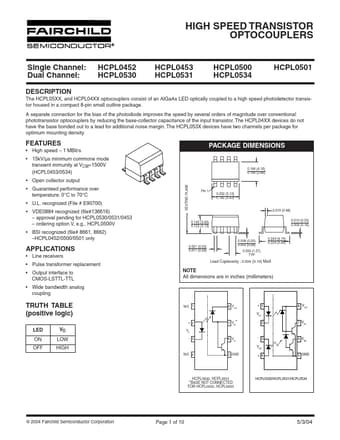

HCPL0534 Datasheet Preview — Preview of HCPL0534 PDF

Datasheet Details

Part number:

HCPL0534

Manufacturer:

Fairchild Semiconductor

File Size:

577.01 KB

Description:

High speed transistor optocouplers.
