ISL9R1560S2, 15A 600V Stealth Diode

ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3S November 2002 ISL9R1560G2, ISL9R1560P2, ISL9R1560S2, ISL9R1560S3S 15A, 600V Stealth™ Diode Gener.
The ISL9R1560G2, ISL9R1560P2, ISL9R1560S2 and ISL9R1560S3S are Stealth™ diodes optimized for low loss performance in high frequency hard switched appl.

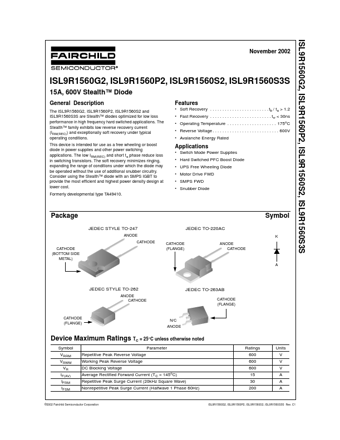

datasheet Preview Page 1 from Datasheet4u.com

ISL9R1560S2_FairchildSemiconductor.pdf

ISL9R1560S2 Datasheet Preview — Preview of ISL9R1560S2 PDF

Datasheet Details

Part number:

ISL9R1560S2

Manufacturer:

Fairchild Semiconductor

File Size:

167.09 KB

Description:

15A 600V Stealth Diode

Features

* Soft Recovery
* . . . . tb / ta > 1.2
* Fast Recovery
* trr < 30ns
* Operating Temperature
* 175oC
* Reverse Voltage

Applications

* The Stealth™ family exhibits low reverse recovery current (IRM(REC)) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free wheeling or boost diode in power supplies and other power switching applications. The low IRM(REC) and short ta phase re
