ISL9001 Datasheet - Renesas

ISL9001 - LDO

ISL9001 LDO with Low ISUPPLY, High PSRR ISL9001 is a high performance Low Dropout linear regulator capable of sourcing 300mA current.

It has a low standby current and high-PSRR and is stable with an output capacitance of 1µF to 10µF with an ESR of up to 200m.

The ISL9001 has a very high PSRR of 90dB and outputs noise less than 30µVRMS.

A reference bypass pin allows connection of a noise-filtering capacitor for low-noise and high-PSRR applications.

When coupled with a no load quiescent current

ISL9001-Renesas.pdf

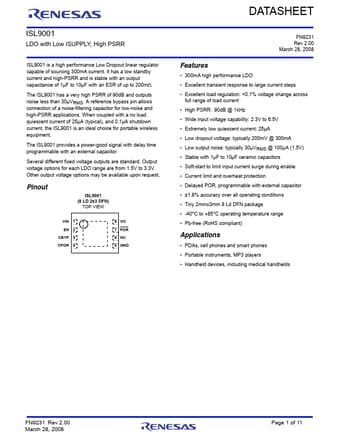

Preview of ISL9001 PDF
ISL9001 Datasheet Preview Page 2 ISL9001 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL9001

Manufacturer:

Renesas ↗

File Size:

590.27 KB

Description:

Ldo.
