ISL94201

Multi-Cell Li-ion Battery Pack Analog Front-End

ISL94201 Features

* Four Battery-Backed Software Controlled Flags

* 10% Accurate 3.3V Voltage Regulator (Minimum 25mA Out With External NPN Transistor Having Current Gain of 70)

* Monitored Cell Voltage Output Stable In 100µs

* Simple I2C Host Interface

* Sleep Operation With P

ISL94201 General Description

SYMBOL VC7/VCC VCELLN VSS AO TEMP3V DESCRIPTION Battery cell 7 voltage input/VCC supply. This pin is used to monitor the voltage of this battery cell externally at pin AO. This pin also provides the operating voltage for the IC circuitry. http://www.DataSheet4U.net/ Battery cell N voltage input. T.

ISL94201 Datasheet (372.96 KB)

Preview of ISL94201 PDF

Datasheet Details

Part number:

ISL94201

Manufacturer:

Intersil

File Size:

372.96 KB

Description:

Multi-cell li-ion battery pack analog front-end.
® ISL94201 Data Sheet July 3, 2008 FN6719.0 Multi-Cell Li-ion Battery Pack Analog Front-End The ISL94201 is an analog front end for a microcontrolle.

📁 Related Datasheet

ISL94200 Multi-Cell Li-ion Battery Pack OCP/Analog Front-End (Intersil)

ISL94202 Standalone 3 to 8 Cell Li-Ion Battery Pack Monitor (Renesas)

ISL94203 3-to-8 Cell Li-ion Battery-Pack Monitor (Renesas)

ISL94208 4- to 6-Cell Li-ion Battery Management Analog Front-End (Renesas)

ISL94212 Multi-Cell Li-Ion Battery Manager (Renesas)

ISL94216 16-Cell Battery Front-End (Renesas)

ISL94216A 16-Cell Battery Front-End (Renesas)

ISL9440 Step-Down PWM and Single Linear Controller (Renesas)

ISL9440A Step-Down PWM and Single Linear Controller (Renesas)

ISL9440B Triple Step-Down PWM and Single Linear Controller (Renesas)

TAGS

ISL94201 Multi-Cell Li-ion Battery Pack Analog Front-End Intersil

Image Gallery

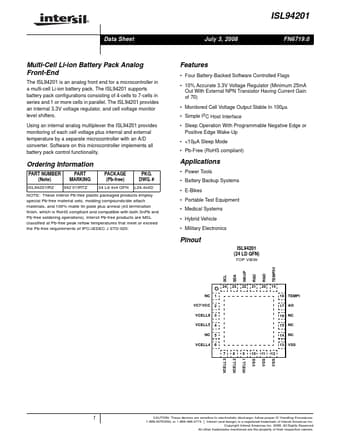

ISL94201 Datasheet Preview Page 2 ISL94201 Datasheet Preview Page 3
