ISL94200

Multi-Cell Li-ion Battery Pack OCP/Analog Front-End

ISL94200 Features

* Software Selectable Overcurrent Protection Levels and Variable Protect Detection Times - 4 Discharge Overcurrent Thresholds - 4 Short Crcuit Thresholds - 4 Charge Overcurrent Thresholds - 8 Overcurrent Delay Times (Charge) - 8 Overcurrent Delay Times (Discharge) - 2 Short Circuit Delay Tim

ISL94200 General Description

SYMBOL VC7/VCC VCELLN VSS DSREF DESCRIPTION Battery cell 7 voltage input/VCC supply. This pin is used to monitor the voltage of this battery cell externally at pin AO. This pin also provides the operating voltage for the IC circuitry. Battery cell N voltage input. This pin is used to monitor the vo.

ISL94200 Datasheet (504.99 KB)

Rating: 1 ★ (3 votes)
Preview of ISL94200 PDF

Datasheet Details

Part number:

ISL94200

Manufacturer:

Intersil

File Size:

504.99 KB

Description:

Multi-cell li-ion battery pack ocp/analog front-end.

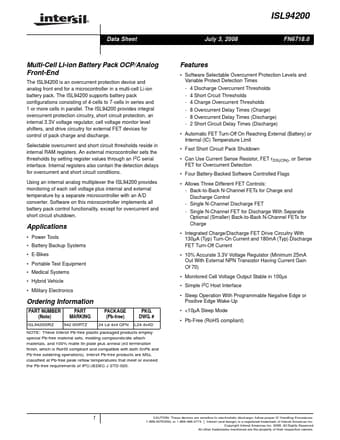

® ISL94200 Data Sheet July 3, 2008 FN6718.0 Multi-Cell Li-ion Battery Pack OCP/Analog Front-End The ISL94200 is an overcurrent protection device and.
