ISL94202 - Standalone 3 to 8 Cell Li-Ion Battery Pack Monitor

ISL94202 Description

Datasheet ISL94202 Standalone 3 to 8 Cell Li-Ion Battery Pack Monitor The ISL94202 is a battery pack monitor IC that supports from three to eight se.

ISL94202 Features

* Eight cell voltage monitors support Li-ion CoO2, Li-ion Mn2O4, Li-ion FePO4, and other chemistries
* Stand-alone pack control - no MCU needed
* Multiple voltage protection options (each programmable to 4.8V; 12-bit digital value) and selectable overcurrent protection levels

ISL94202 Applications

* Power tools
* Battery back-up systems
* Light electric vehicles
* Portable equipment
* Energy storage systems
* Solar farms
* Medical equipment
* Hospital beds
* Monitoring equipment

📥 Download Datasheet

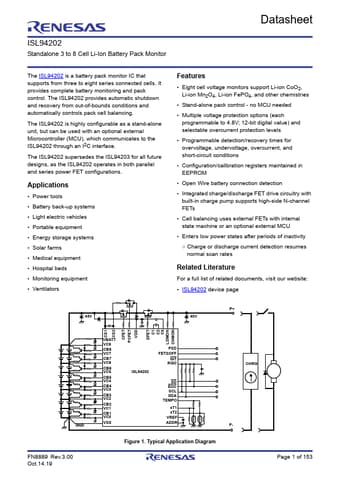

Preview of ISL94202 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL94202
Manufacturer
Renesas ↗
File Size
1.86 MB
Datasheet
ISL94202-Renesas.pdf
Description
Standalone 3 to 8 Cell Li-Ion Battery Pack Monitor
