ISL90843 Datasheet - Intersil Corporation

Quad Digital Controlled Potentiometers

ISL90843 Features

* Four potentiometers in one package

* 256 resistor taps

* 0.4% resolution

* I2C serial interface - Two address pins allow up to four devices/bus

* Wiper resistance: 70Ω typical @ 3.3V

* Standby current

ISL90843 General Description

MSOP PIN 1 2 3 4 5 6 7 8 9 10 SYMBOL RW3 SCL SDA GND RW2 RW1 A0 A1 VCC RW0 “Wiper” terminal of DCP3 I2C interface clock Serial data I/O for the I2C interface Device ground pin “Wiper” terminal of DCP2 “Wiper” terminal of DCP1 Device address for the I2C interface Device address for the I2C interface.

ISL90843 Datasheet (776.51 KB)

ISL90843 Datasheet Preview — Preview of ISL90843 PDF

Datasheet Details

Part number:

ISL90843

Manufacturer:

Intersil Corporation

File Size:

776.51 KB

Description:

Quad digital controlled potentiometers.

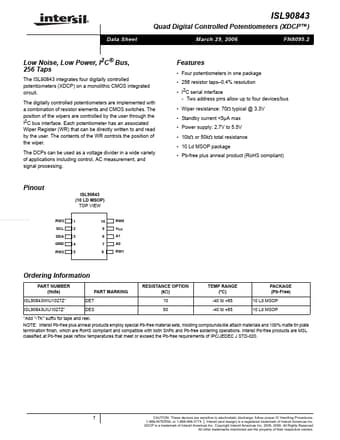

® ISL90843 Quad Digital Controlled Potentiometers (XDCP™) Data Sheet March 29, 2006 FN8095.2 Low Noise, Low Power, I2C® Bus, 256 Taps The ISL90843 i.
