ISL94216 - 16-Cell Battery Front-End

Product Overview

Renesas

📥 Download Datasheet

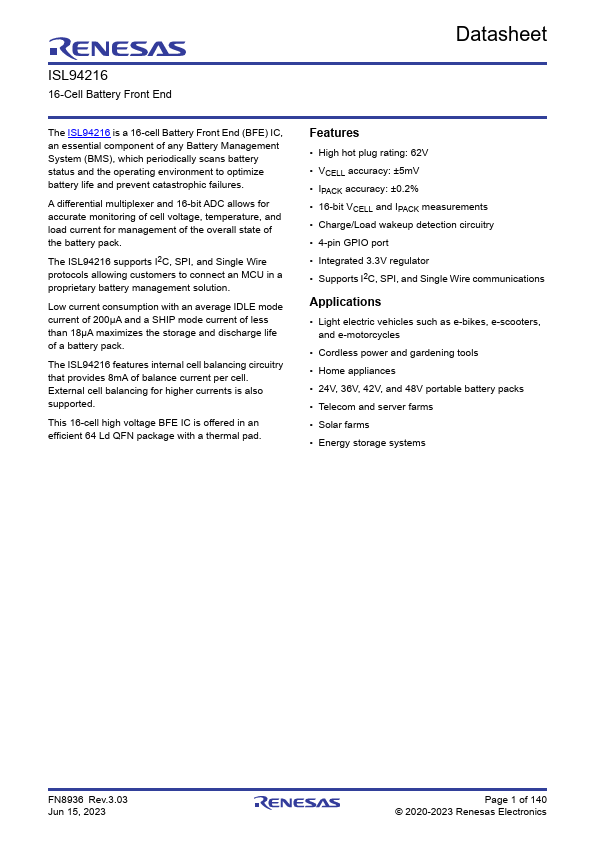

ISL94216 16-Cell Battery Front-End by Renesas - Datasheet Preview — Datasheet preview – ISL94216

Datasheet Details

Part number	ISL94216
Manufacturer	Renesas
File Size	2.05 MB
Description	16-Cell Battery Front-End
Datasheet	ISL94216 Datasheet

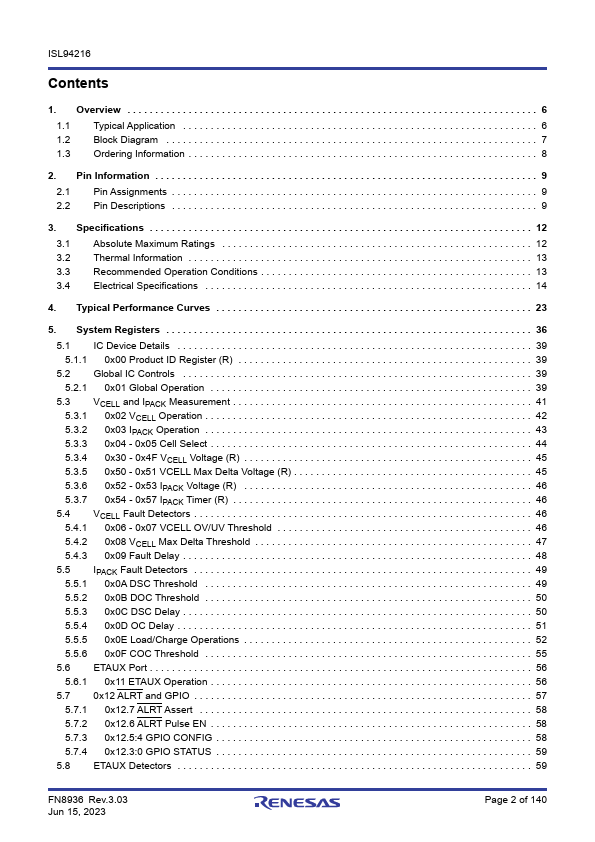

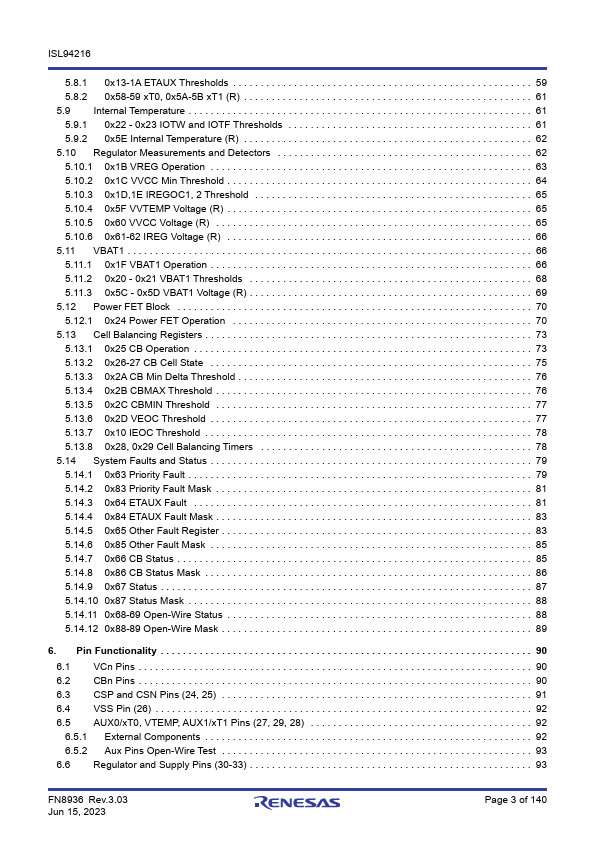

Additional preview pages of the ISL94216 datasheet.

Product details

Description

. . .

Features

internal cell balancing circuitry that provides 8mA of balance current per cell. External cell balancing for higher currents is also supported. This 16-cell high voltage BFE IC is offered in an efficient 64 Ld QFN package with a thermal pad. Features.
High hot plug rating: 62V.
VCELL accuracy: ±5mV.
IPACK accuracy: ±0.2%.
16-bit VCELL and IPACK measurements.
Charge/Load wakeup detection circuitry.
4-pin GPIO port.
Integrated 3.3V re.
