ISL9005 Datasheet - Renesas

ISL9005 - LDO

ISL9005 NOT RECOMMENDED FOR NEW DESIGNS RECOMMENDED REPLACEMENT PART ISL9005A LDO with Low ISUPPLY, High PSRR DATASHEET FN9234 Rev 2.00 May 5, 2008 ISL9005 is a high performance Low Dropout linear regulator capable of sourcing 300mA current.

It has a low standby current and high-PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200m.

The ISL9005 has a high PSRR of 75dB and output noise less than 45µVRMS.

When coupled with a no load quiescent current of 50µA (typica

ISL9005 Features

* 300mA high performance LDO

* Excellent transient response to large current steps

* Excellent load regulation:

ISL9005-Renesas.pdf

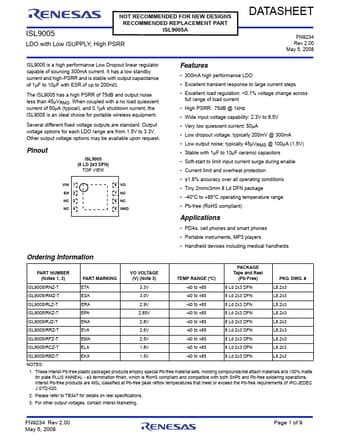

Preview of ISL9005 PDF
ISL9005 Datasheet Preview Page 2 ISL9005 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL9005

Manufacturer:

Renesas ↗

File Size:

536.53 KB

Description:

Ldo.
