ISL9R860PF2 - Diode

Fairchild Semiconductor

📥 Download Datasheet

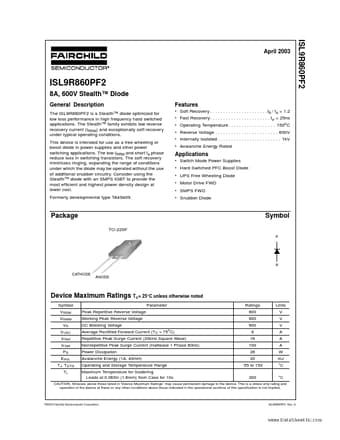

ISL9R860PF2 Datasheet Preview — Preview of ISL9R860PF2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISL9R860PF2
Manufacturer	Fairchild ↗ Semiconductor
File Size	143.53 KB
Description	Diode
Datasheet	ISL9R860PF2_FairchildSemiconductor.pdf

ISL9R860PF2 Product details

Description

The ISL9R860PF2 is a Stealth™ diode optimized for low loss performance in high frequency hard switched applications.

Features

Soft Recovery.
. . tb / ta > 1.2.
Fast Recovery.
. . . trr < 25ns.
Operating Temperature.
. . . 150oC Reverse Voltage.
. . . . 600V Internally Isolated.
. . . . 1kV Avalanche Energy Rated.
