ISL9R1560P2, ISL9R1560G2 Datasheet - ON Semiconductor

ISL9R1560P2 Stealth Rectifier

The ISL9R1560G2, ISL9R1560P2, ISL9R1560S3S is a STEALTH diode optimized for low loss performance in high frequency hard switched applications. The STEALTH family exhibits low reverse recovery current (Irr) and exceptionally soft recovery under typical operating conditions. This device is intended fo.

ISL9R1560P2 Features

* Stealth Recovery trr = 29.4 ns (@ IF = 15 A)

* Max Forward Voltage, VF = 2.2 V (@ TC = 25°C)

* 600 V Reverse Voltage and High Reliability

* Avalanche Energy Rated

* These Devices are Pb

* Free and are RoHS Compliant Applications

* SMPS

ISL9R1560G2-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: ISL9R1560P2, ISL9R1560G2. Please refer to the document for exact specifications by model.

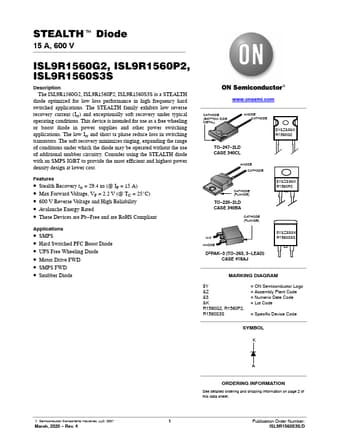

ISL9R1560P2 Datasheet Preview Page 2 ISL9R1560P2 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL9R1560P2, ISL9R1560G2

Manufacturer:

ON Semiconductor ↗

File Size:

484.94 KB

Description:

Stealth rectifier.

Note:

This datasheet PDF includes multiple part numbers: ISL9R1560P2, ISL9R1560G2.
Please refer to the document for exact specifications by model.
