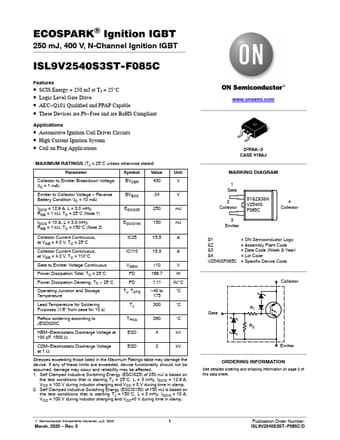

ISL9V2540S3ST-F085C Datasheet, Igbt, ON Semiconductor

ISL9V2540S3ST-F085C Features

• Igbt
• SCIS Energy = 250 mJ at TJ = 25°C
• Logic Level Gate Drive
• AEC
• Q101 Qualified and PPAP Capable
• These Devices are Pb
• Free and are Ro

PDF File Details

Part number:

ISL9V2540S3ST-F085C

Manufacturer:

ON Semiconductor ↗

File Size:

1.33MB

Download:

📄 Datasheet

Description:

N-channel igbt.

ISL9V2540S3ST-F085C Application

• Applications
• Automotive Ignition Coil Driver Circuits
• High Current Ignition System
• Coil on Plug Applications MAXIMUM
