ISL9V3040P3-F085C, ISL9V3040D3ST-F085C Datasheet - ON Semiconductor

ISL9V3040P3-F085C, ISL9V3040D3ST-F085C, N-Channel IGBT

ECOSPARK) Ignition IGBT 300 mJ, 400 V, N *Channel Ignition IGBT ISL9V3040x3ST-F085C .

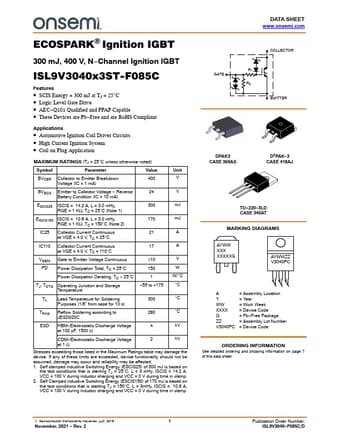

datasheet Preview Page 1 from Datasheet4u.com

ISL9V3040D3ST-F085C-ONSemiconductor.pdf

ISL9V3040P3-F085C Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V3040P3-F085C, ISL9V3040D3ST-F085C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISL9V3040P3-F085C, ISL9V3040D3ST-F085C

Manufacturer:

ON Semiconductor ↗

File Size:

2.41 MB

Description:

N-Channel IGBT

Note:

This datasheet PDF includes multiple part numbers: ISL9V3040P3-F085C, ISL9V3040D3ST-F085C.
Please refer to the document for exact specifications by model.

Features

* SCIS Energy = 300 mJ at TJ = 25°C
* Logic Level Gate Drive
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb

Applications

* Automotive Ignition Coil Driver Circuits
* High Current Ignition System
* Coil on Plug Application MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Symbol Parameter Value Unit BVCER Collector to Emitter Breakdown Voltage (IC = 1 mA) 400 V BVECS Emitter to Collect
