ISL9V2040P3, ISL9V2040D3S Datasheet - Fairchild Semiconductor

ISL9V2040P3 N-Channel Ignition IGBT

The ISL9V2040D3S, ISL9V2040S3S, and ISL9V2040P3 are the next generation ignition IGBTs that offer outstanding SCIS capability in the space saving D-Pak (TO-252), as well as the industry standard D²-Pak (TO-263) and TO-220 plastic packages. This device is intended for use in automotive ignition circu.

ISL9V2040P3 Features

* Space saving D - Pak package available

* SCIS Energy = 200mJ at TJ = 25oC

* Logic Level Gate Drive Package JEDEC TO-252AA JEDEC TO-263AB

ISL9V2040D3S-FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: ISL9V2040P3, ISL9V2040D3S. Please refer to the document for exact specifications by model.

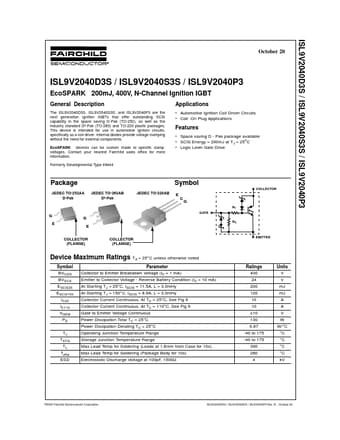

ISL9V2040P3 Datasheet Preview Page 2 ISL9V2040P3 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL9V2040P3, ISL9V2040D3S

Manufacturer:

Fairchild Semiconductor

File Size:

321.85 KB

Description:

N-channel ignition igbt.

Note:

This datasheet PDF includes multiple part numbers: ISL9V2040P3, ISL9V2040D3S.
Please refer to the document for exact specifications by model.
