ISL9V2540S3ST Datasheet, Igbt, Fairchild Semiconductor

ISL9V2540S3ST Features

  • Igbt ! SCIS Energy = 250mJ at TJ = 25oC ! Logic Level Gate Drive ! Qualified to AEC Q101 ! RoHS Compliant Applications ! Automotive Ignition Coil Driver Circuits ! Coil - On Plug Application

PDF File Details

Part number:

ISL9V2540S3ST

Manufacturer:

Fairchild Semiconductor

File Size:

360.56kb

Download:

📄 Datasheet

Description:

N-channel ignition igbt. The ISL9V2540S3ST is a next generation ignition IGBT that offers outstanding SCIS capability in the industry standard D²-Pak (TO-263)

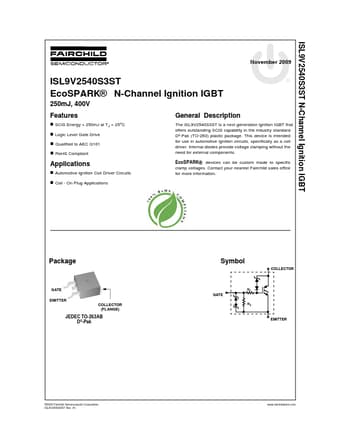

Datasheet Preview: ISL9V2540S3ST 📥 Download PDF (360.56kb)
Page 2 of ISL9V2540S3ST Page 3 of ISL9V2540S3ST

ISL9V2540S3ST Application

  • Applications ! Automotive Ignition Coil Driver Circuits ! Coil - On Plug Applications General Description The ISL9V2540S3ST is a next generation ig
