ISL9V2040S3S, ISL9V2040D3S, N-Channel Ignition IGBT

ISL9V2040D3S / ISL9V2040S3S / ISL9V2040P3 October 20 ISL9V2040D3S / ISL9V2040S3S / ISL9V2040P3 EcoSPARK * 200mJ, 400V, N-Channel Ignition IGBT .
The ISL9V2040D3S, ISL9V2040S3S, and ISL9V2040P3 are the next generation ignition IGBTs that offer outstanding SCIS capability in the space saving D-Pa.

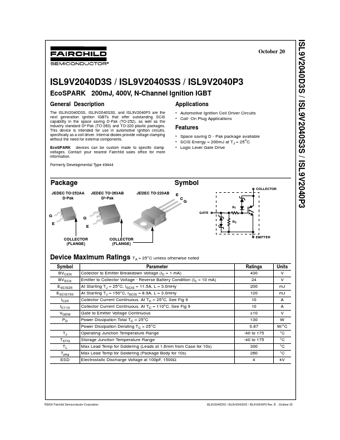

datasheet Preview Page 1 from Datasheet4u.com

ISL9V2040D3S-FairchildSemiconductor.pdf

ISL9V2040S3S Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V2040S3S, ISL9V2040D3S. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

ISL9V2040S3S, ISL9V2040D3S

Manufacturer:

Fairchild Semiconductor

File Size:

321.85 KB

Description:

N-Channel Ignition IGBT

Note:

This datasheet PDF includes multiple part numbers: ISL9V2040S3S, ISL9V2040D3S.
Please refer to the document for exact specifications by model.

Features

* Space saving D - Pak package available
* SCIS Energy = 200mJ at TJ = 25oC
* Logic Level Gate Drive Package JEDEC TO-252AA JEDEC TO-263AB

Applications

* Automotive Ignition Coil Driver Circuits
