ISL9V3040S3ST-F085C

N-Channel IGBT

ISL9V3040S3ST-F085C Features

* SCIS Energy = 300 mJ at TJ = 25°C

* Logic Level Gate Drive

* AEC

* Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free and are RoHS Compliant Applications

* Automotive Ignition Coil Driver Circuits

* High Current Ignition Syste

ISL9V3040S3ST-F085C Datasheet (2.41 MB)

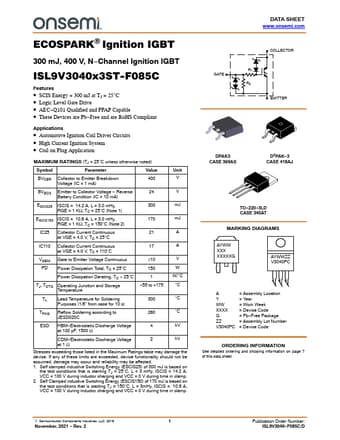

Preview of ISL9V3040S3ST-F085C PDF

Datasheet Details

Part number:

ISL9V3040S3ST-F085C

Manufacturer:

ON Semiconductor ↗

File Size:

2.41 MB

Description:

N-channel igbt.
