KSB564A - Audio Frequency Power Amplifier

Fairchild Semiconductor

Datasheet Details

Part number	KSB564A
Manufacturer	Fairchild Semiconductor
File Size	41.21 KB
Description	Audio Frequency Power Amplifier
Datasheet	KSB564A Datasheet

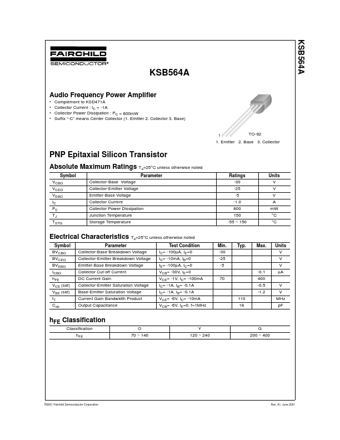

Additional preview pages of the KSB564A datasheet.

📁 Similar Datasheet

KSB564A - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
KSB564A - PNP Transistor (JCET)
KSB564 - PNP Silicon Epitaxial Planar Transistor (SEMTECH)
KSB546 - PNP Transistor (Samsung semiconductor)
KSB596 - PNP Transistor (INCHANGE)
KSB - Low-profile Tact Switch (ITT Industries)
KSB-0 - Low-profile Tact Switch (ITT Industries)
KSB-1 - Low-profile Tact Switch (ITT Industries)
KSB0505HA-G303 - DC FAN (DELTA)
KSB1015 - PNP Transistor (INCHANGE)

Other Datasheets by Fairchild Semiconductor

KSB546 - PNP Epitaxial Silicon Transistor
KSB596 - PNP Epitaxial Silicon Transistor
KSB1015 - PNP Epitaxial Silicon Transistor
KSB1017 - PNP Silicon Epitaxial Transistor
KSB1022 - PNP Silicon Darlington Transistor
KSB1023 - PNP Silicon Darlington Transistor
KSB1097 - Low Frequency Power Amplifier
KSB1098 - Low Frequency Power Amplifier

Full PDF Text Transcription

Click to expand full text

KSB564A KSB564A Audio Frequency Power Amplifier • • • • Complement to KSD471A Collector Current : IC = -1A Collector Power Dissipation : PC = 800mW Suffix “-C” means Center Collector (1. Emitter 2. Collector 3. Base) TO-92 1 1. Emitter 2. Base 3. Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings -30 -25 -5 -1.

Published: Apr 5, 2005 |
