MBR3050PT - 30 Ampere Schottky Barrier Rectifiers

Fairchild Semiconductor

The MBR3050PT by Fairchild Semiconductor is a 30 Ampere Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

MBR3050PT 30 Ampere Schottky Barrier Rectifiers by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **MBR3050PT** 30 Ampere Schottky Barrier Rectifiers datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	MBR3050PT
Manufacturer	Fairchild Semiconductor
File Size	234.85 KB
Description	30 Ampere Schottky Barrier Rectifiers
Datasheet	MBR3050PT_FairchildSemiconductor.pdf

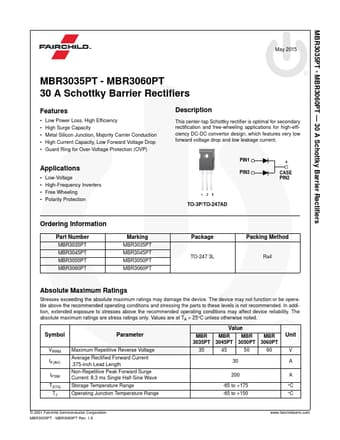

Additional preview pages of the MBR3050PT datasheet.

MBR3050PT Product details

Description

This center-tap Schottky rectifier is optimal for secondary rectification and free-wheeling applications for high-efficiency DC-DC convertor design, which

Features

Low Power Loss, High Efficiency.
High Surge Capacity.
Metal Silicon Junction, Majority Carrier Conduction.
High Current Capacity, Low Forward Voltage Drop.
Guard Ring for Over-Voltage Protection (OVP).
