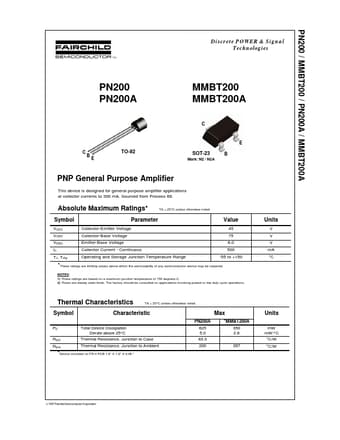

PN200 / MMBT200 / PN200A / MMBT200A Discrete POWER & Signal Technologies PN200 PN200A MMBT200 MMBT200A C E C B TO-92 E SOT-23 Mark: N2 / N2A B PNP General Purpose Amplifier This device is designed for general purpose amplifier applications at collector currents to 300 mA. Sourced from Process 68. Absolute Maximum Ratings* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Collector-Emitter Voltage Value 45 75 6.0 500 -55 to +150 Units V V V mA °C Operating and Storage Junction Temperature Range *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
