PN200A PNP Amplifier

PN200A Description

PN200 / MMBT200 / PN200A / MMBT200A Discrete POWER & Signal Technologies PN200 PN200A MMBT200 MMBT200A C E C B TO-92 E SOT-23 Mark: N2 / N2A B .

PN200A Applications

* at collector currents to 300 mA. Sourced from Process 68. Absolute Maximum Ratings
* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Collector-Emitter Voltage Value 45 75 6.0 500 -55 to +15

📥 Download Datasheet

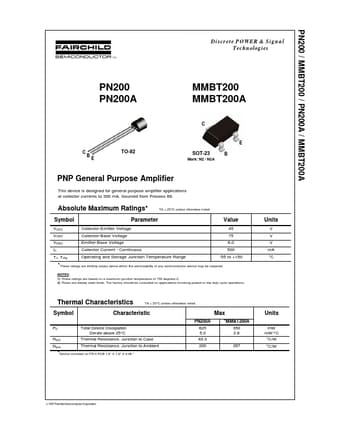

Preview of PN200A PDF
datasheet Preview Page 2 datasheet Preview Page 3
